Avalanche adapter for TA27
Avalanche adapter is used together with TA 27 B family
test adapter.
Avalanche adapter tests avalanche energy of the switchers with reverse
voltage to 100 V. The avalanche energy is energy absorbed by the
semiconductor switch while swithcing of an inductive load.
Now we can test this adapter
Low-side FET switches.
Testing
• Avalanche energy up to 3 J
• Current before switch-off 100 A

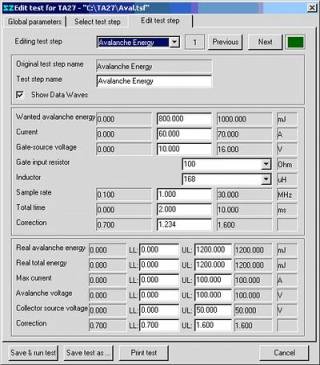

• Graphic user interface
Tested parameters
| DS
Breakdown voltage |
VBRDSS |
| Gate
Threshold Voltage |
VGS |
| Inverse
diode Forward Voltage |
VSD |
| Forward
G-S Leakage Current |
IGSS |
| Reverse
G-S Leakage Current |
IGSS |
| Zero Gate
Voltage Drain cur. |
IDSS |
| D.S. On
Resistance |
RDSon |
| Forward
Trans-conductance |
gfs |
|
