TA06B

Optocouplers

Testing
   • optocouplers with analog I/O
   • 1-4 devices in package

Parameters
Current Transfer Ratio CTR
Saturation Voltage or Output Voltage Vsat, Vout
Dark Current or Output Current IOH, Iout
Diod Forward Voltage or Input Voltage Vfwd Vin
Diod Breakdown Voltage Vbr
Switch-on Time ton
Switch-off time toff
Reverse Current or Input Current Iin
Supply Current Icc
Output Short Current Ios
Enable Current Ie
Threshold or Hysterisis Current/Voltages I/UTH


Screenshots
 Main control panel for TA 06B
Main control panel of TA 06B
Values to be tested are entered to panel columns.

Select test step
Select test step

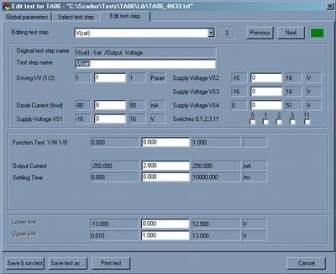

Edit test step
Edit test step
