TA03B
Voltage regulators
Testing
• Regulators
| Parameters |
| Output
voltage |
Vo |
| Line
regulation |
RegLine |
| Load
regulation |
RegLoad |
| Quiescent
current |
Ig |
| Ripple
rejection |
SVR |
| Reset
leakage current |
Ileak |
| Short
circuit current |
Isc |
| Dropout
voltage |
DOV |
| Reset
delay time |
Tres |
| Reset
pulse width |
Trpw |
| Reset
output voltage |
Vres |
|
Screenshots

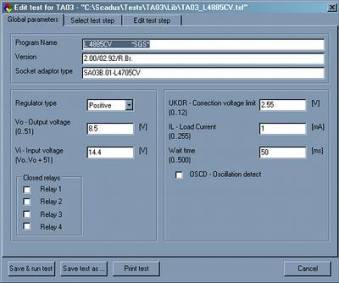

Global
parameters

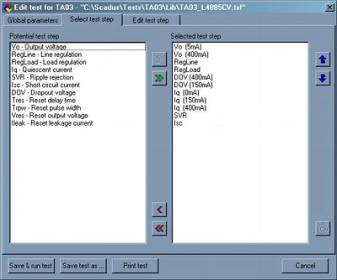

Select
test step

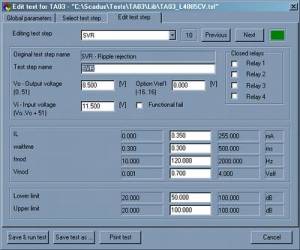

Edit
test step
|
