TA02B
Relays
Testing
• Monostabile relays
• Bistabile relays with 1 or 2 coils
| Parameters |
| Coil
resistance |
Rcoil |
| Diode
forward voltage |
Vtwd |
| Case
test |
Icase |
| Contact
resistance |
Rcontact |
| Leakage
current |
Ileak |
| Function
test |
FCT |
| Pickup
energization |
Voperate
Ioperate |
| Dropout
energization |
Vrelease
Irelease |
| Operate
time |
toperate(V),
(I) |
| Release
time |
trelease(V),
(I) |
| Transit
time |
ttransit(V),
(I) |
| Synchronicity |
tsync |
| Bounce
time |
tbounce |
| Bounce
number |
nbounce |
|
Screenshots

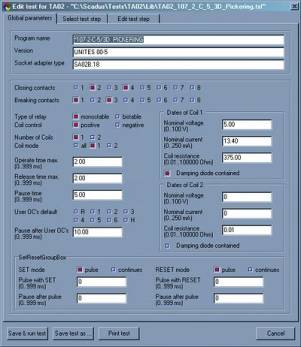

Main
control panel of TA02B
Parameters values to be tested are entered into panel columns

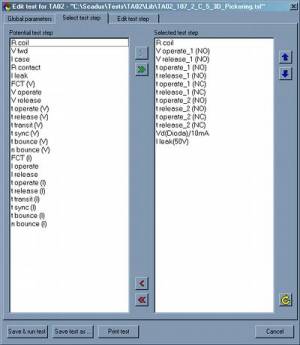

Select
test step
Edit
test step
|
